Double Head Cutting Saw Machine for Aluminum Profile Aluminum Window Making Machine

FOB Reference Price:Get Latest Price
$4,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LJZ2-450*3700
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
decaluma
Condition:
New
Voltage:
380V
Rated Power:
3KW
Dimension(L*W*H):
4500*1300*1450mm
Weight:
1600kg
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training
Product name:
Double Head Cutting Saw for Aluminum profile
Machine type:
LJZ2-450*3700
Power supply:
Made to order
motor power:
3kW(1.5kW*2)
Spindle Rotary Speed:
2800 r/min
Air consumption:
200L/min
Max.Cutting length:
3700mm
Cutting width:
120mm
Cutting height:
150mm
Cutting angle:
22.5° 45°And 90°
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Steel chassis with plastic cover or full wooden box
Port
Qingdao port

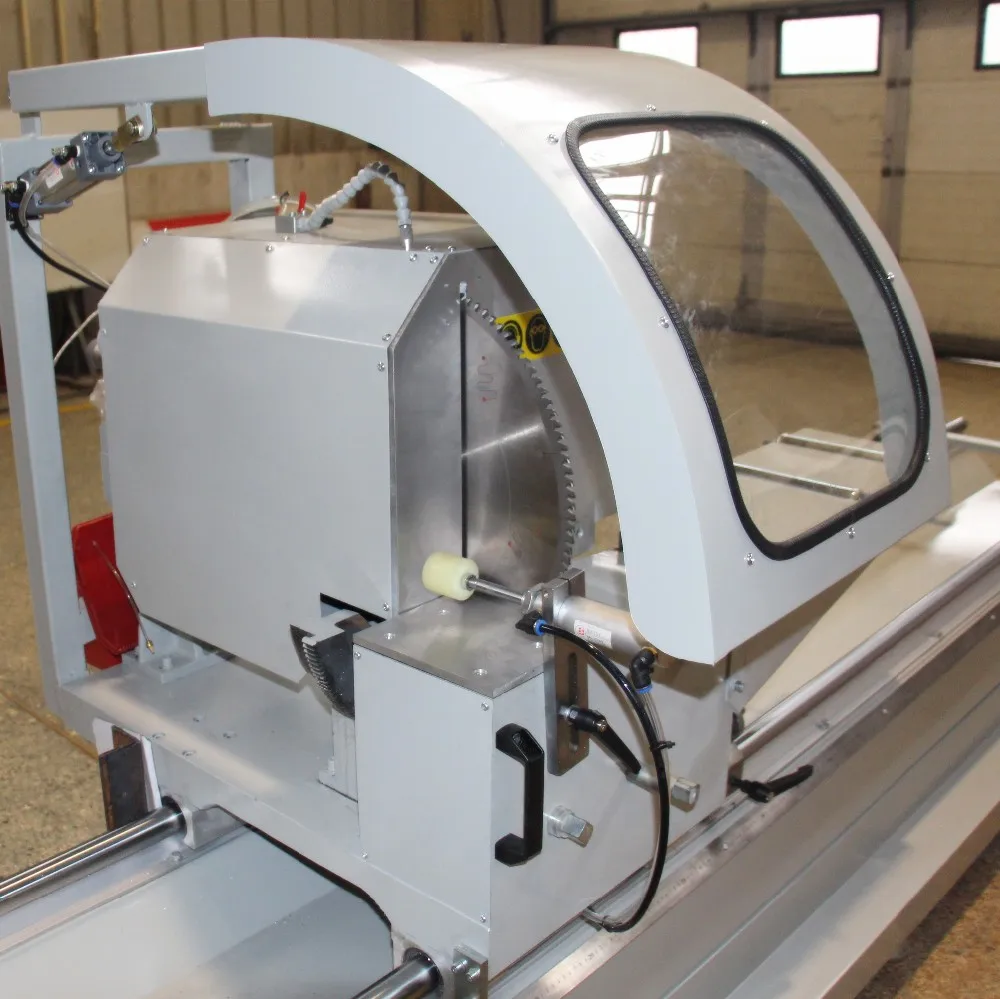

 Made in China Double Head Cutting Saw for Aluminum profile  LJZ2-450X3700



Product Description

Specification:

1. This machine is applicable for cutting aluminum and PVC profile

2. at the angles of -45°, +45°, 90°.

3. Its carbide cutters are directly fixed on motor shafts and can swing freely to meet processing demand, which give the machine high cutting speed and accuracy.

4. The two sawing units can cut profiles simultaneously and separately,the saw blade can swing to required angle.

Parameter:

Power supply

Made to order

motor power

3kW(1.5kW*2)

Spindle Rotary Speed

2800 r/min

Operation air pressure

0.5~0.8MPa

Air consumption

200L/min

Max.Cutting length

3700mm

Min.Cutting length

580mm(double-head)

Cutting width

120mm

Cutting height

150mm

Cutting angle

22.5° 45°And 90°

Cutter feeding speed

0~3 m/min Stepless speed regulating

Cutting profile surface plane

≤0.10mm

Cutting angle tolerance

Ra12.5 μm

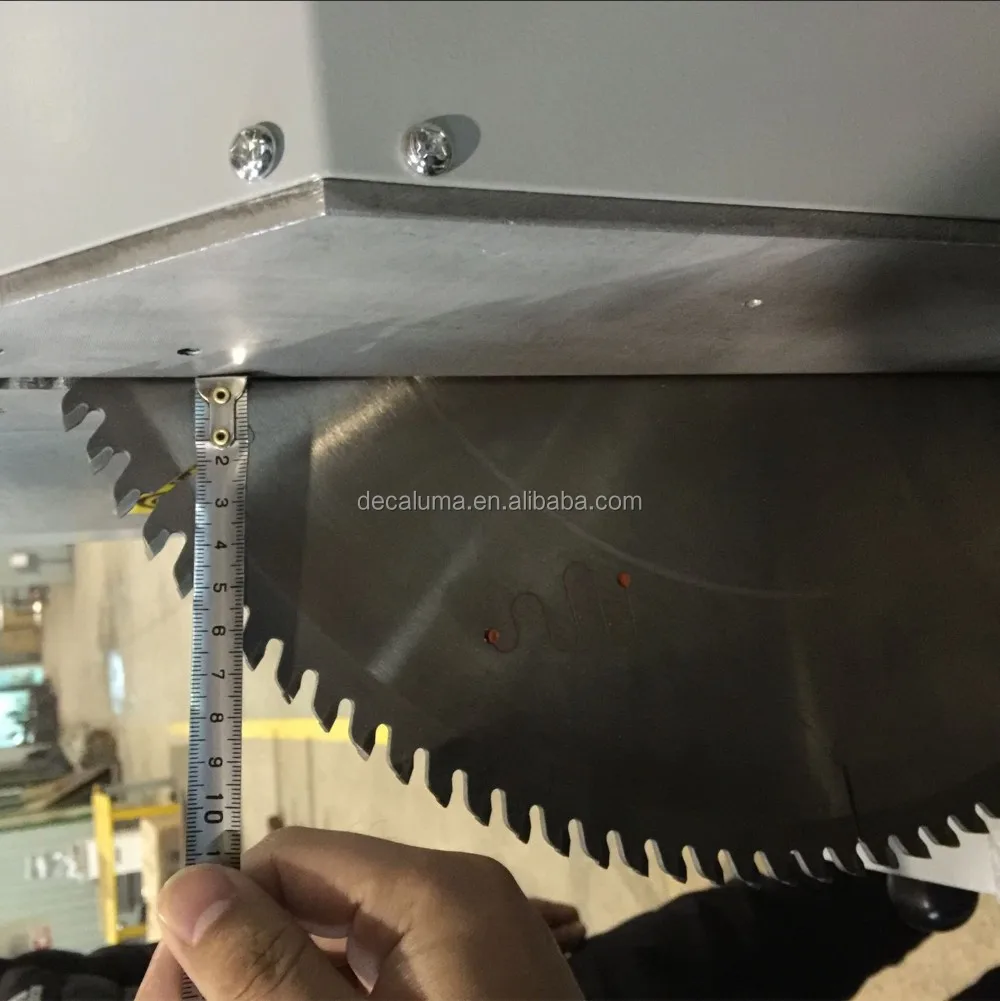

Saw blade specification

φ450mm×3.2mm×φ40mm Z=80

Dimension

4500*1300*1450mm

Weight

1600kg



IMG_4264_



double head cutting saw 1_



IMG_4268_



IMG_4258_

Our Services



1.Sample service:

     Our engineer is available to travel abroad, help the installation, maintenance and training staff.

2. Customized service:

      Free industrial information, free investment analysis for windows, doors, and curtain wall project, free  layout design for window, and door and curtain wall product line.

3.After sales service:

    One year guarantee

     Free adjustment

     Free training to operation and maintenance workers

     Provide quick supply of spare parts for window and curtain wall companies.

We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.

Company Information

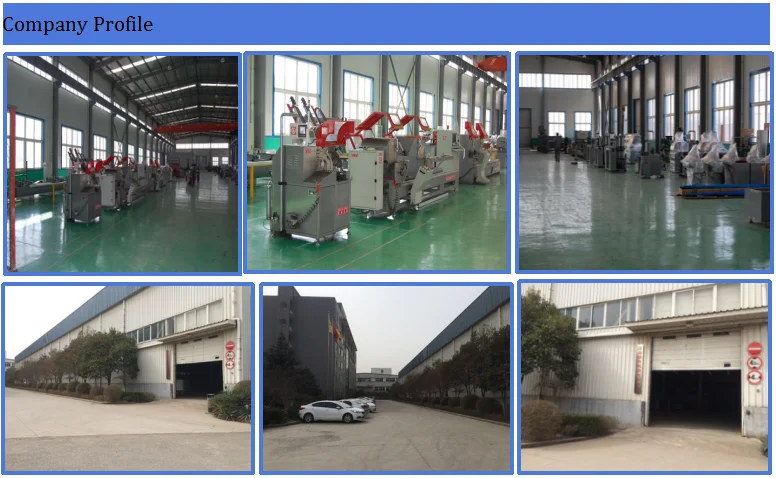

company profile

    JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.

   Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.



EOQL1}{8H$K_6]GUCIV%I3E

customer visiting

parrtner

FAQ

full line

2. When you can do if my machine have some problems?

 1) We can send you free components to you if your machines are in guarantee time.

 2) We can send our engineers to repair your machines

3. When can we arrange shipment?

  We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says

4. Are you trading company or manufacturer?

    Manufacturer(OEM)

5. Quick details about our company

Company Name

JINAN DEGA MACHINE CO.,LTD.

Year established

2006

Address

No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA

Business type

Manufacturer



Product range

CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine

Product advantage

Using advanced solidworks design platform

Management certificate

ISO9001,national patent

Fair we attend

Shanghai and Beijing international windows show

E-catalog

available

MOQ

1 set

Payment terms

TT or L/C

Shipping port

Qingdao port
